OCTG-Drill Pipe Inspection Equipment EMI UNIT(system)

To reach the black gold, drilling pipes have to penetrate deep into the earth.

Electromagnetic inspection (EMI), as a non-destructive testing method, can detect cracks, corrosion, cavities and similar defects by inducing a magnetic field into metal objects and collecting the resulting responses by a number of sensors placed around it.
Play Video

Specification:

  • complete set of cables and connectors including signal, buggy drive and magnetic coil
  • 11-inch magnetic coil (smaller and larger size according to customer’s order)
  • dual buggy drive for pipe sizes of 2 3/8, 2 7/8, 3 ½, 4, 4 ½, 5, 5 ½, 6 5/8-inch
  • Ability to inspect 2 3/8, 2 7/8, 3 1/2, 4, 4 1/2, 5, 5 1/2, 6 5/8-inch pipes
  • dual set of air jacks with hose, compressor, pedal and connectors
  • Data saving and displaying data on the computer
  • 10 years software and hardware support
  • Standard calibration tube for all sizes
  • Shoes carrier (head buggy)
  • Ingress protection 65
  • 8 input channels
  • portable system
  • 1-year guarantee

Operation Desk

processor and controller

Coil

Magnetic field supplier

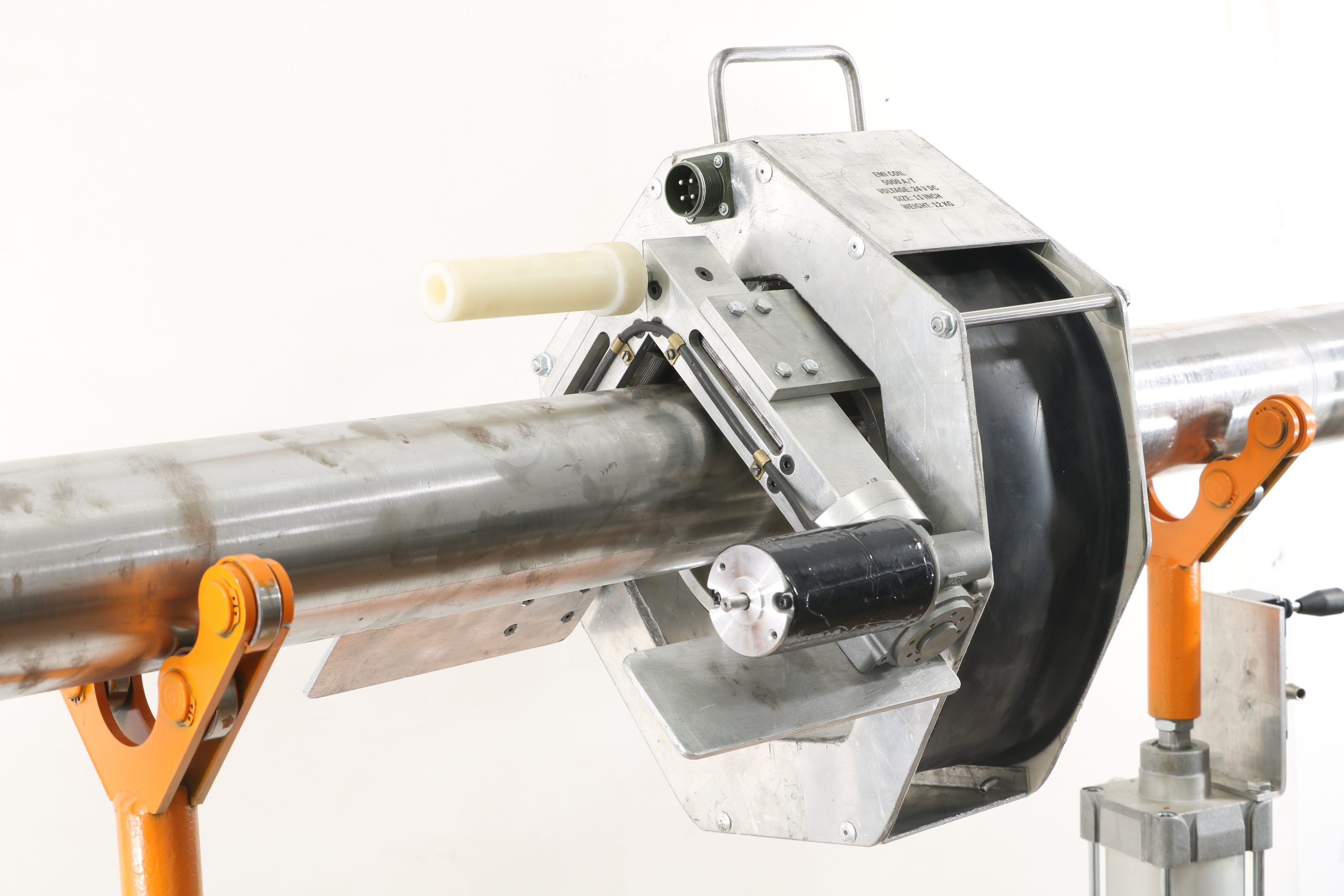

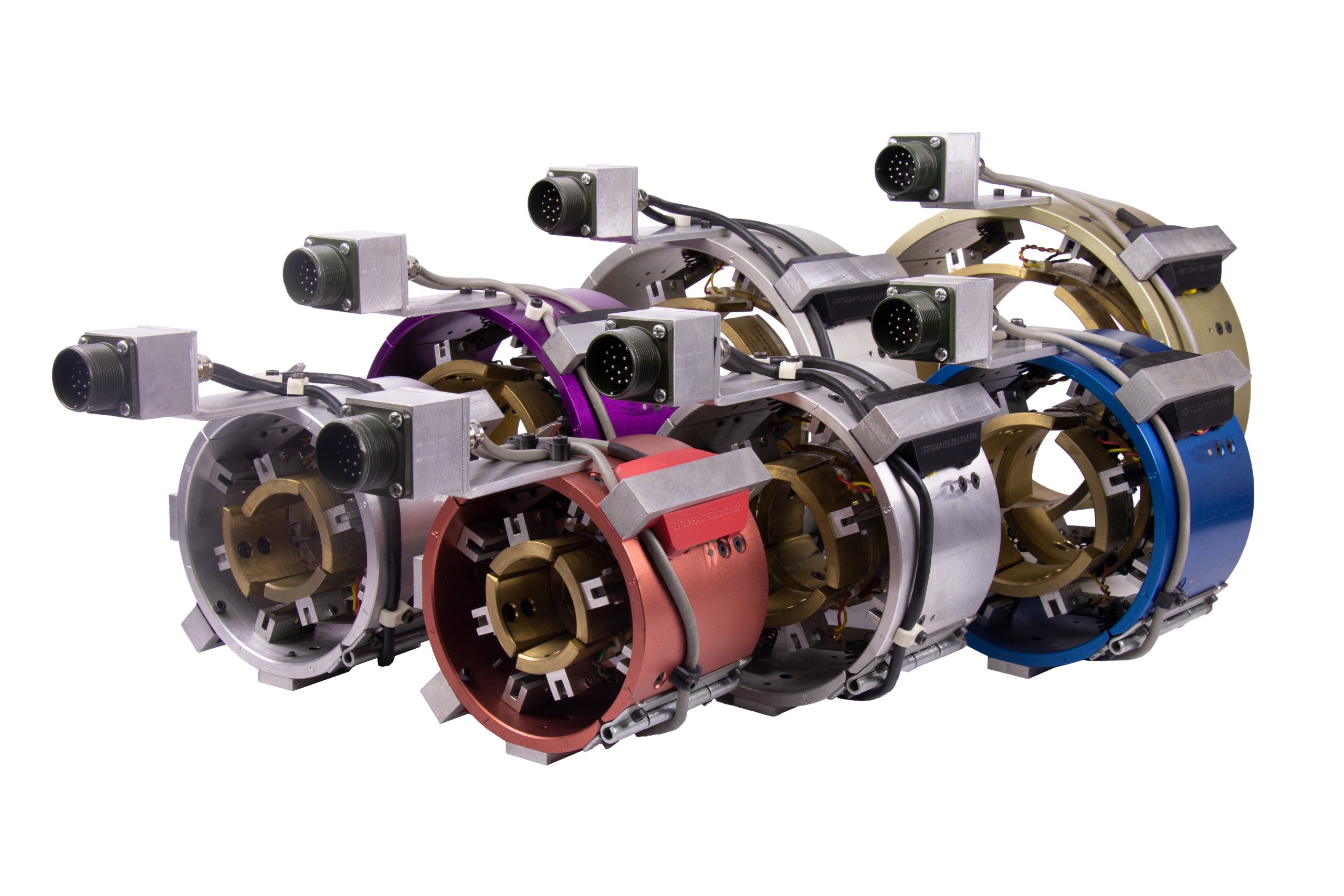

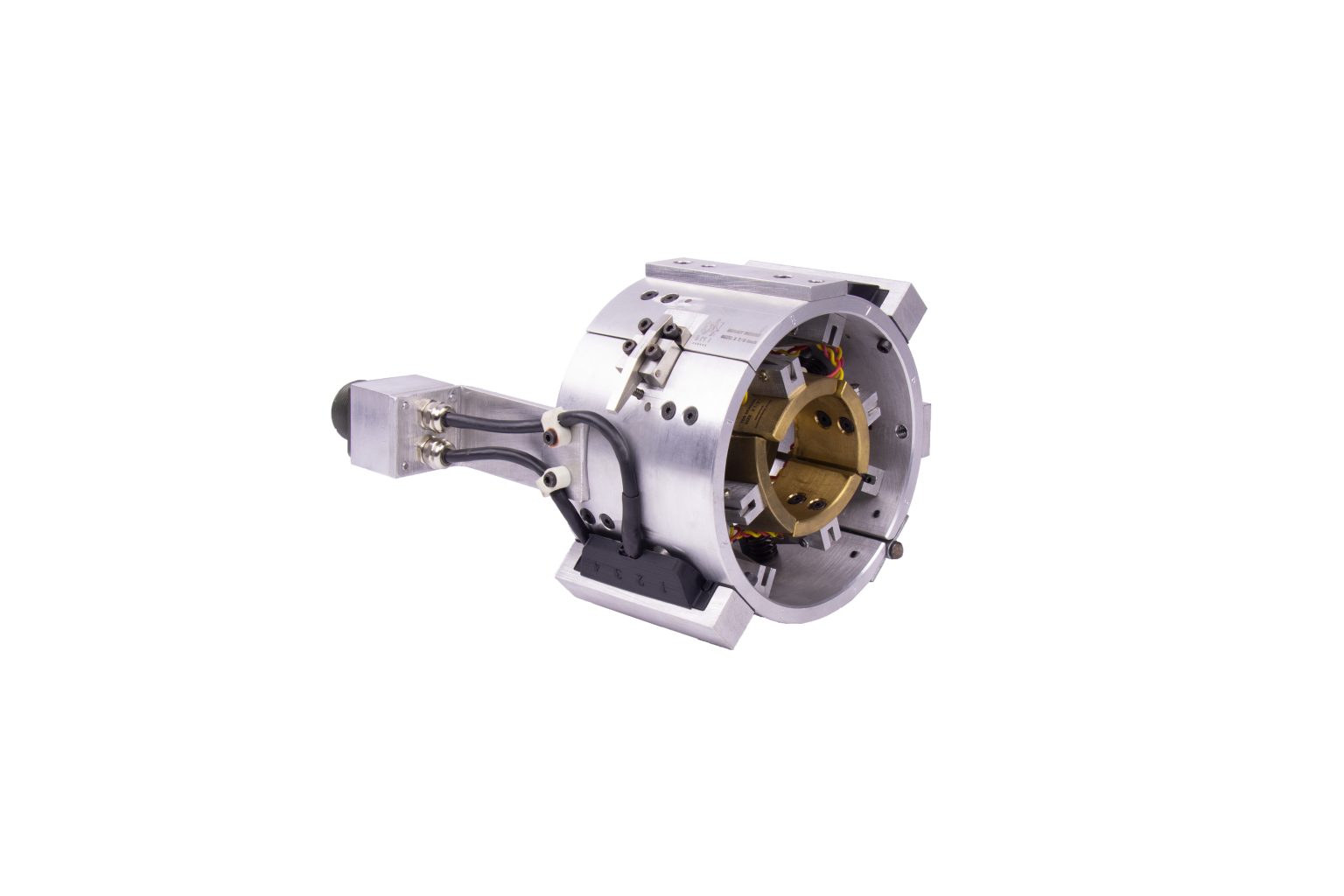

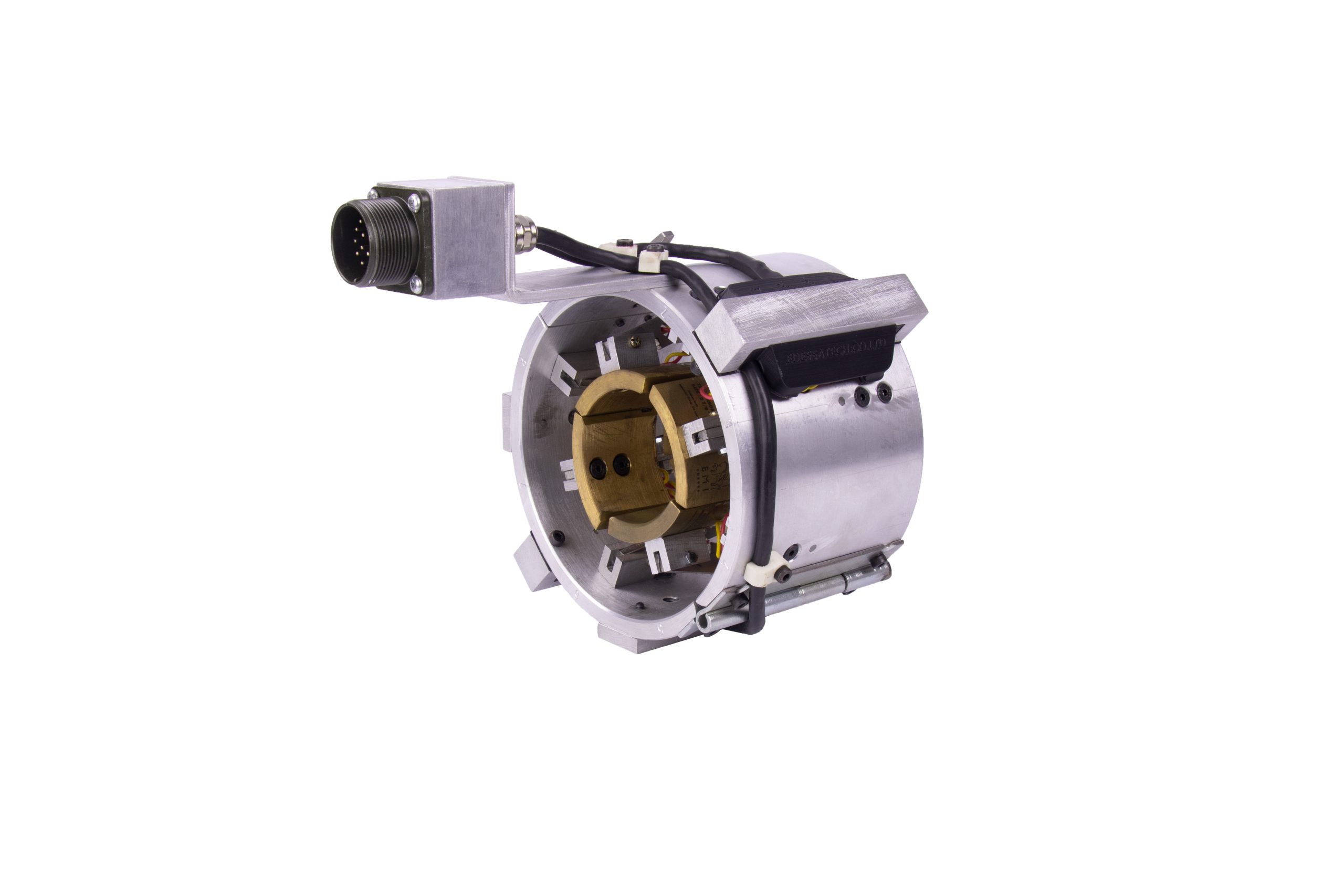

Buggy-Head

Carrier of magnetic sensors

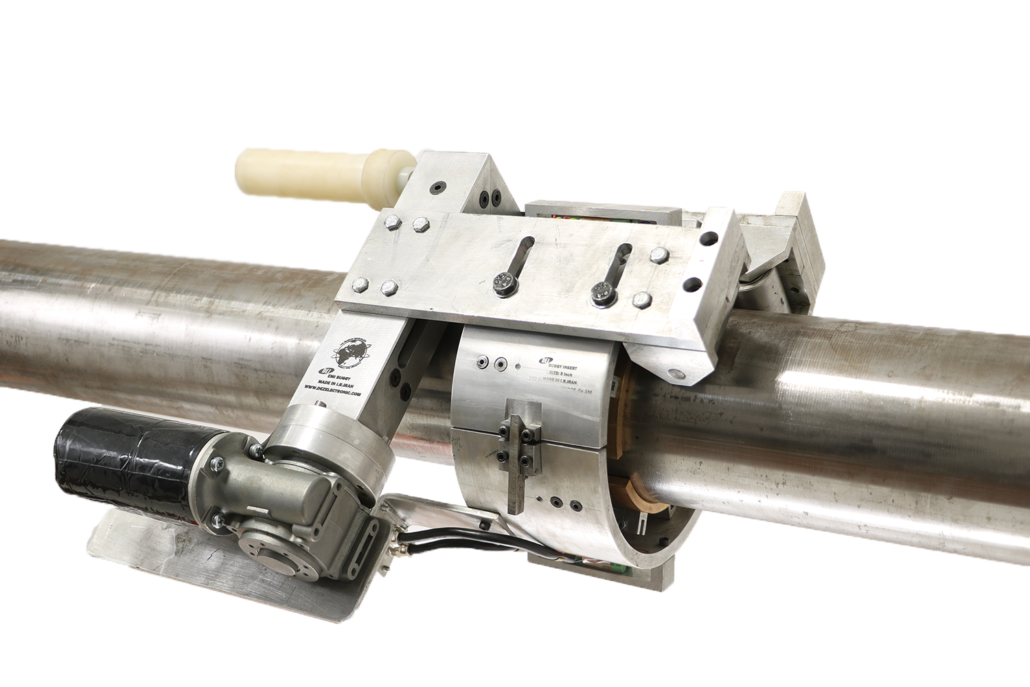

Buggy

Carrier of coil and Buggy-Head
